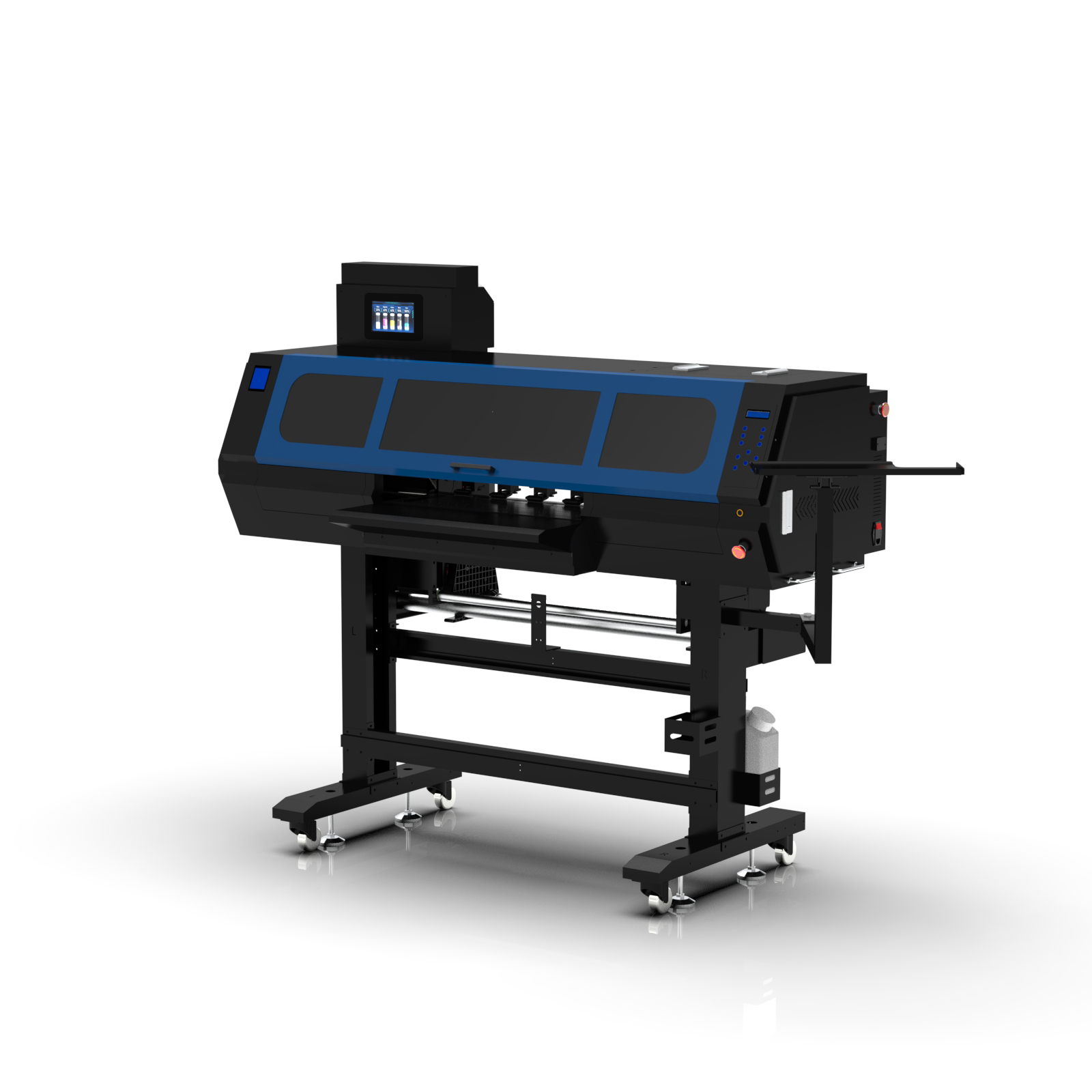

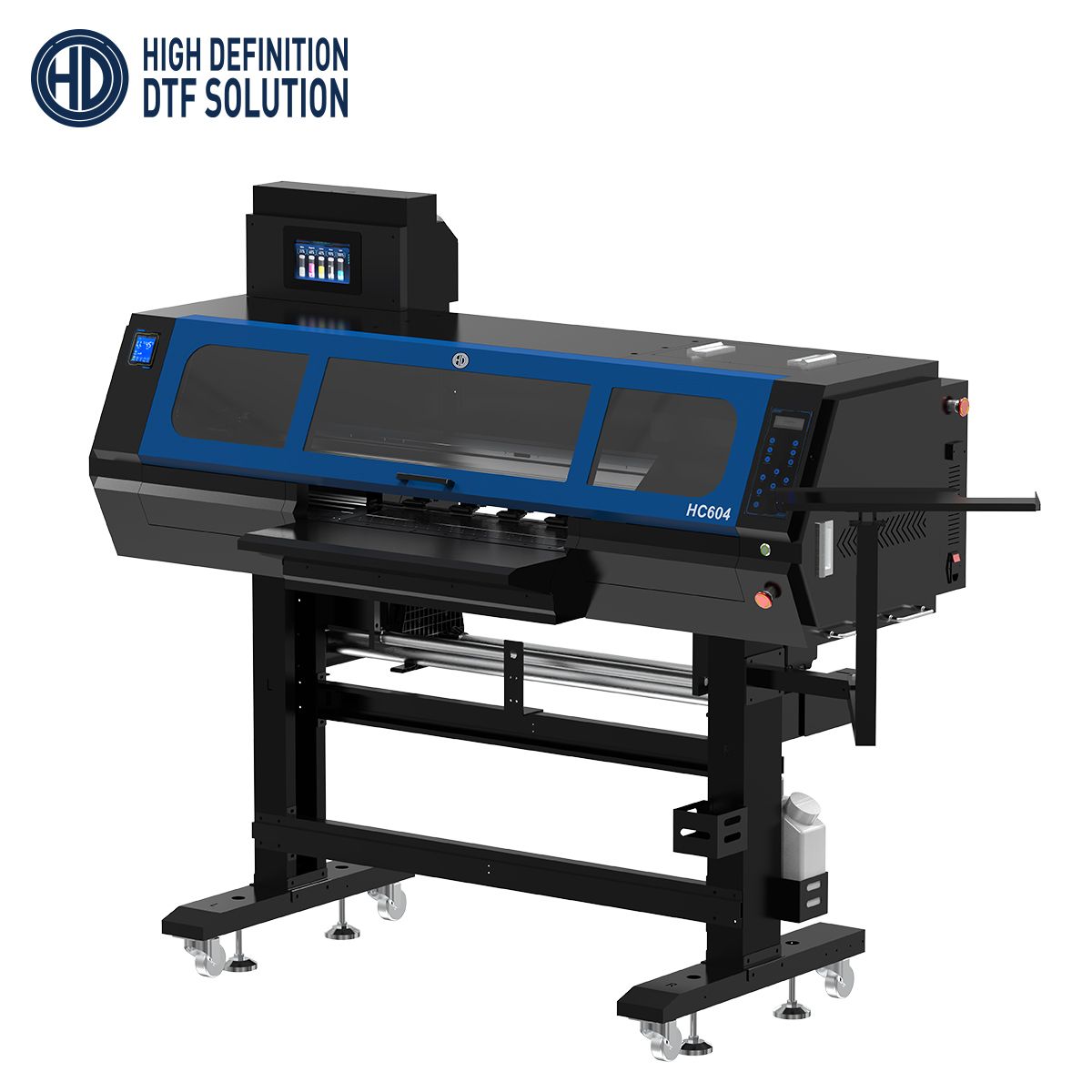

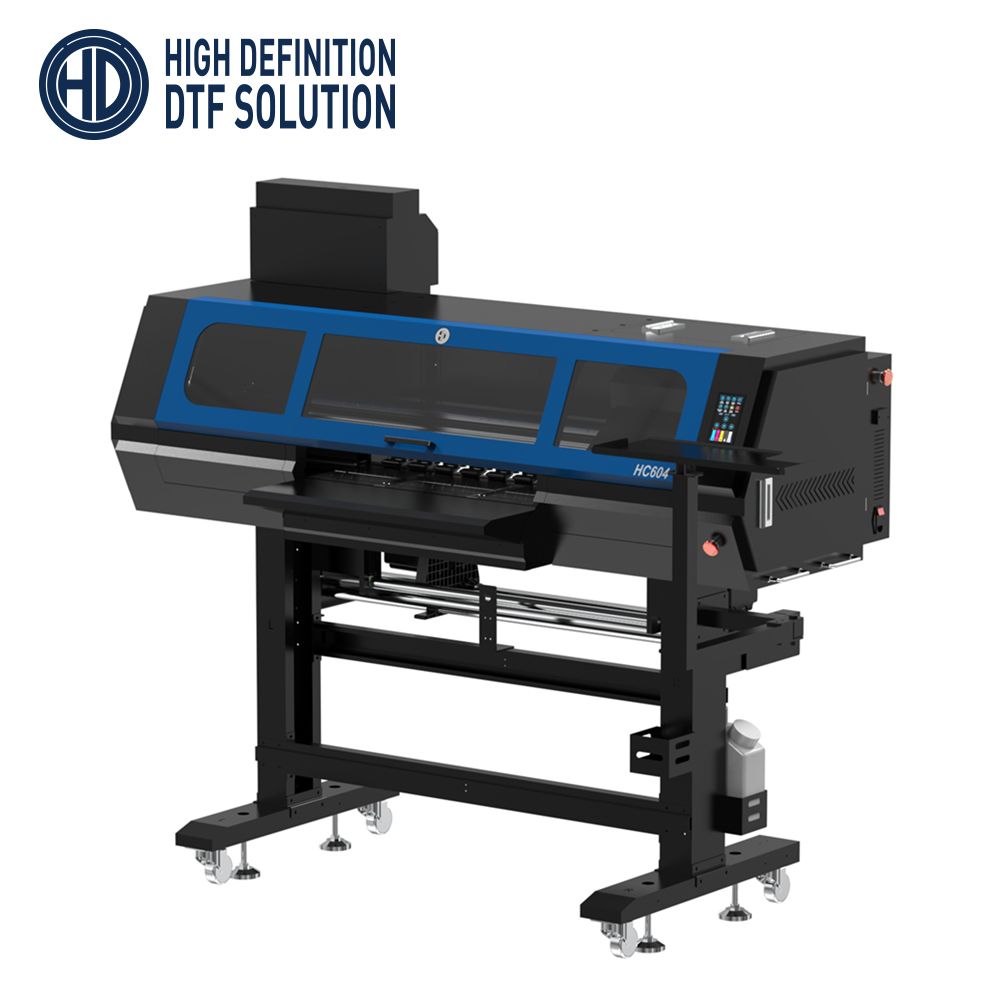

Model:HC604
Four EPSON high precision i3200-A1 heads
Support CMYK+white printing
Roll to roll 60cm print width
Auto print head cleaning
White ink circulation and stirring

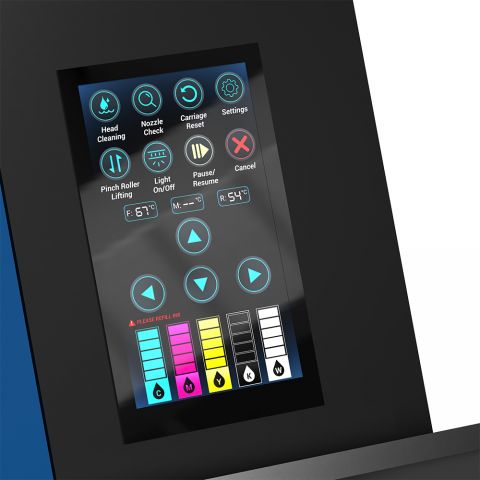

Full-color ink volume display with ink level alarm
Auto wetting for white head
Front & rear pre-heating plate
Cover open protection sensor
Share:
Product Details
Qualification Certificatio
Product Specifications
| Model: | HC604 |
| Print head: | EPSON i3200-A1 |
| Number of Print head : | 4 |
| Printi width: | ≤60cm |
| Print color: | CMYK+White |
| Print media: | PET film |
| Print accuracy: | 720*1200 / 720*1800 / 720*2400 dpi |
| Print speed: | 6Pass 16㎡/h 8Pass 20㎡/h |
| Print ink: | DTF ink |
| RIP software: | Devstudio / Flexi |
| Operating system: | Win7、Win10、Win11 |
| Print interface: | Gigabit network port |
| Trolley Anti-collision function: | Both ends of the trolley are equipped with touch anti-collision alarm emergency stop devices |
| Automatic Feeding Function: | Automatic tension discharging with probe induction |
| Paper Shortage Alarm Function: | Paper shortage alarm during printing, automatic stop printing |
| Waste Ink Alarm Function: | Automatic alarm when waste ink bottle is full |
| Circulating Stirring Function: | The white ink is independently powered, and it can be stirred regularly and indefinitely in the off state |
| Ink Shortage Alarm Function: | Automatic alarm for low ink volume of ink bottle |
| Print Platform Lighting Function | Print platform LED illumination |
| Platform Suction: | Adjustable suction power |
| Work Environment: | Temperature:15-30°C & Humidity: 35-65% |
| Power: | 1200W |
| Voltage: | 110V/220V |
| Weight: | 202KG |
| Dimensions: | 185*90*164cm |
