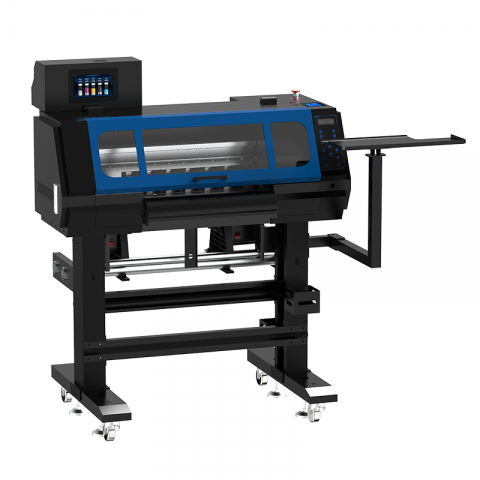

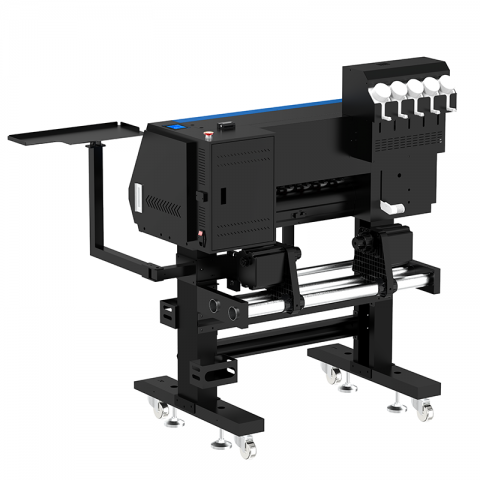

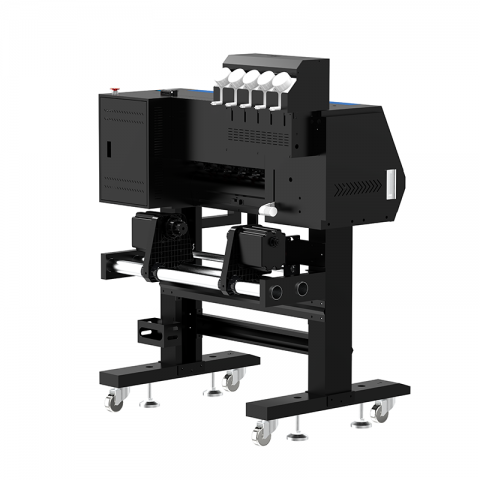

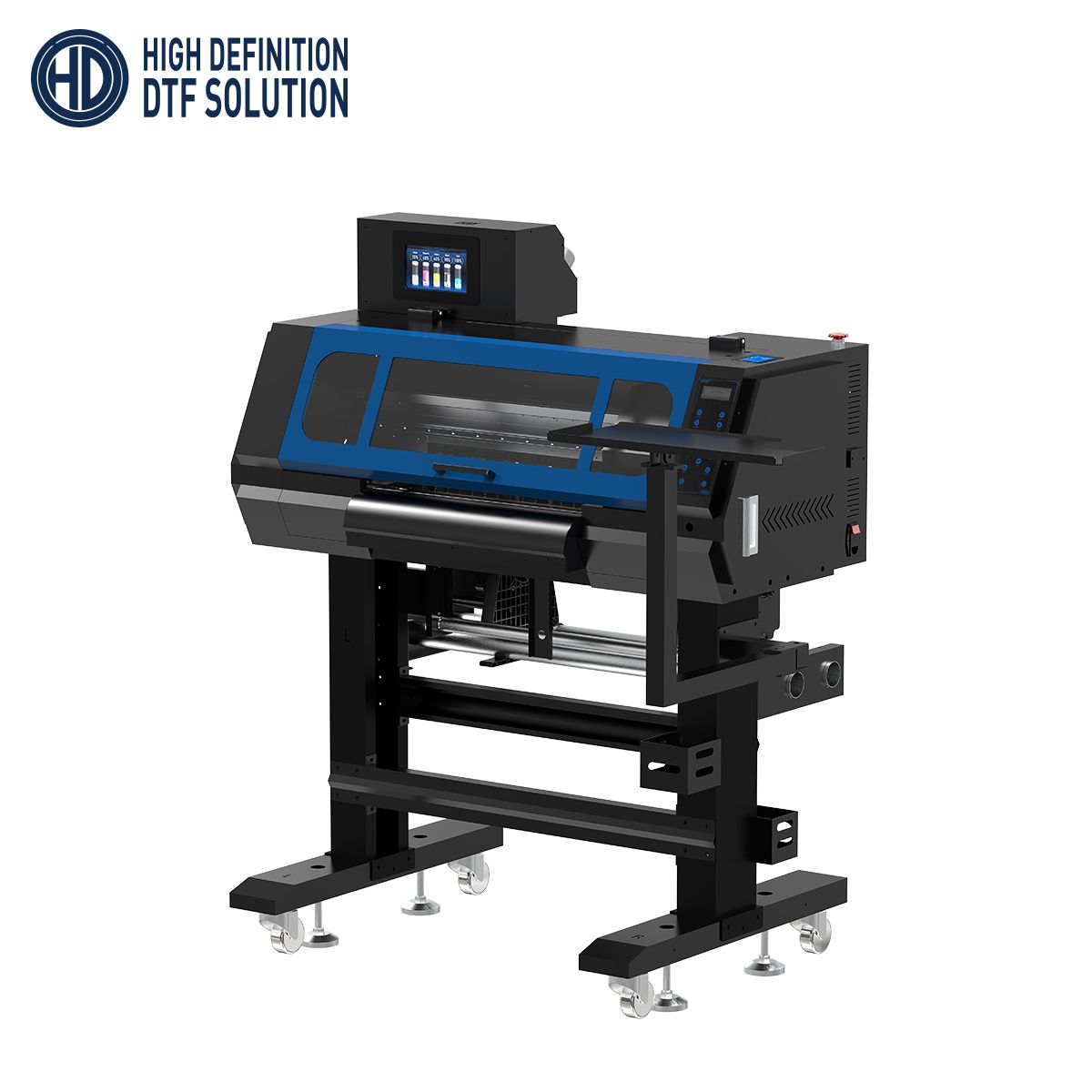

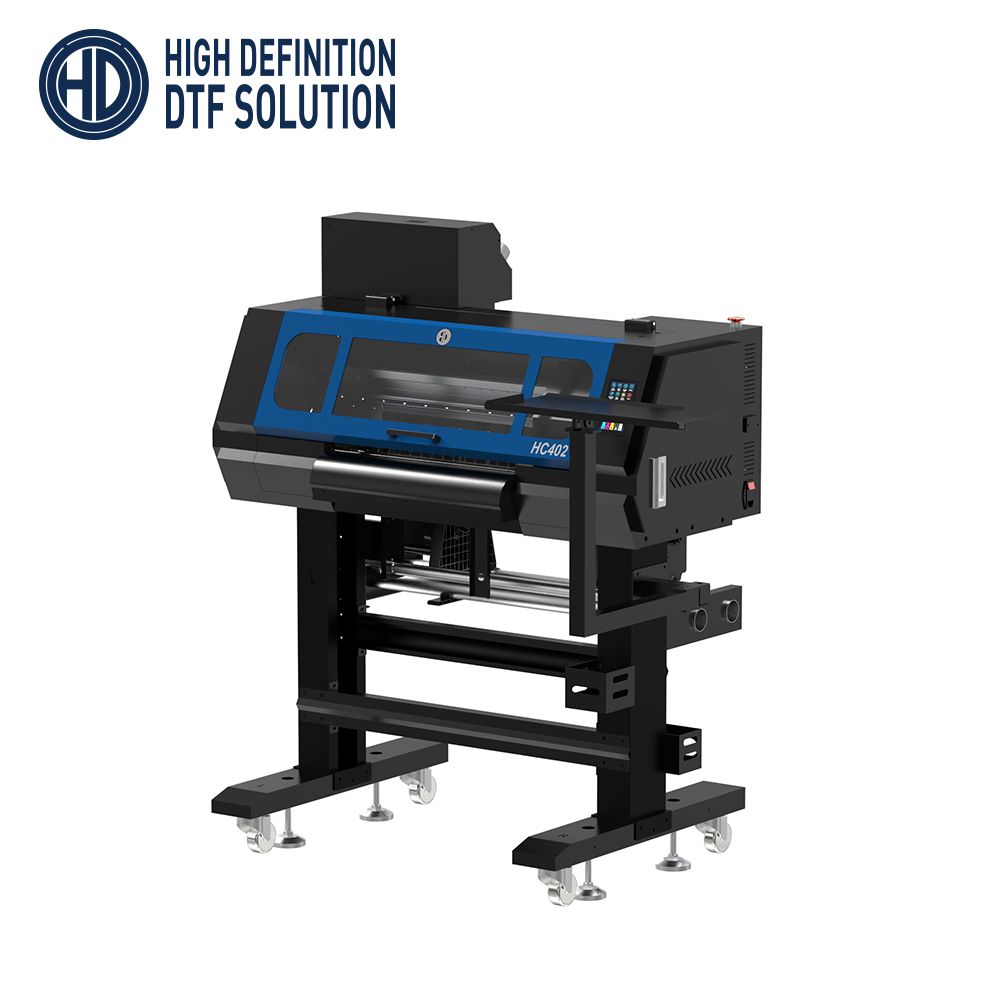

Model:HC402
Roll to roll 45cm print width
Auto print head cleaning
White ink circulation and stirring
Auto wetting for white head
Auto vacuum table
Front & rear pre-heating plate
Cover open protection sensor
Share:
Product Details
Qualification Certification
Product Specifications
| Model: | HC402 |
| Print head: | EPSON i1600-A1 |
| Number of Print head : | 2 |
| Printi width: | ≤45cm |
| Print color: | CMYK+White |
| Print media: | PET film |
| Print accuracy: | 720*900 / 720*1200 / 720*1800 dpi |
| Print speed: | 6Pass 4.5㎡/h 8Pass 3.5㎡/h |
| Print ink: | DTF ink |
| RIP software: | Devstudio / Flexi |
| Operating system: | Win7、Win10、Win11 |
| Print interface: | Gigabit network port |
| Trolley Anti-collision function: | Both ends of the trolley are equipped with touch anti-collision alarm emergency stop devices |
| Automatic Feeding Function: | Automatic tension discharging with probe induction |
| Paper Shortage Alarm Function: | Paper shortage alarm during printing, automatic stop printing |
| Waste Ink Alarm Function: | Automatic alarm when waste ink bottle is full |
| Circulating Stirring Function: | The white ink is independently powered, and it can be stirred regularly and indefinitely in the off state |
| Ink Shortage Alarm Function: | Automatic alarm for low ink volume of ink bottle |
| Print Platform Lighting Function | Print platform LED illumination |
| Platform Suction: | Adjustable suction power |
| Work Environment: | Temperature:15-30°C & Humidity: 35-65% |
| Power: | 800W |
| Voltage: | 110V/220V |
| Weight: | 138KG |
| Dimensions: | 120*62*141cm |
Qualification Certification
Printer Certificate
printers CE.M.2024.206.C101810
Powder-shaking Certificate
Smoke Purifier Certificate
Heat Press Machine Certificate
Oven Certificate
