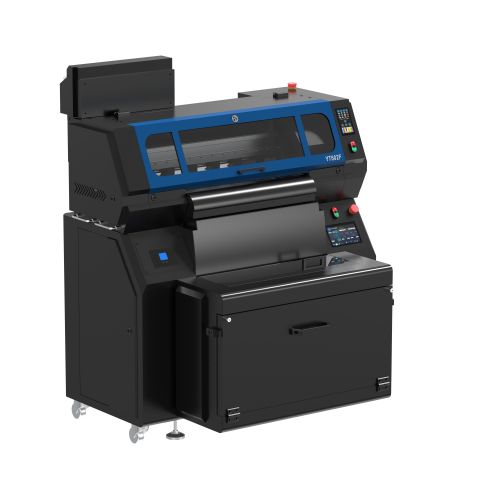

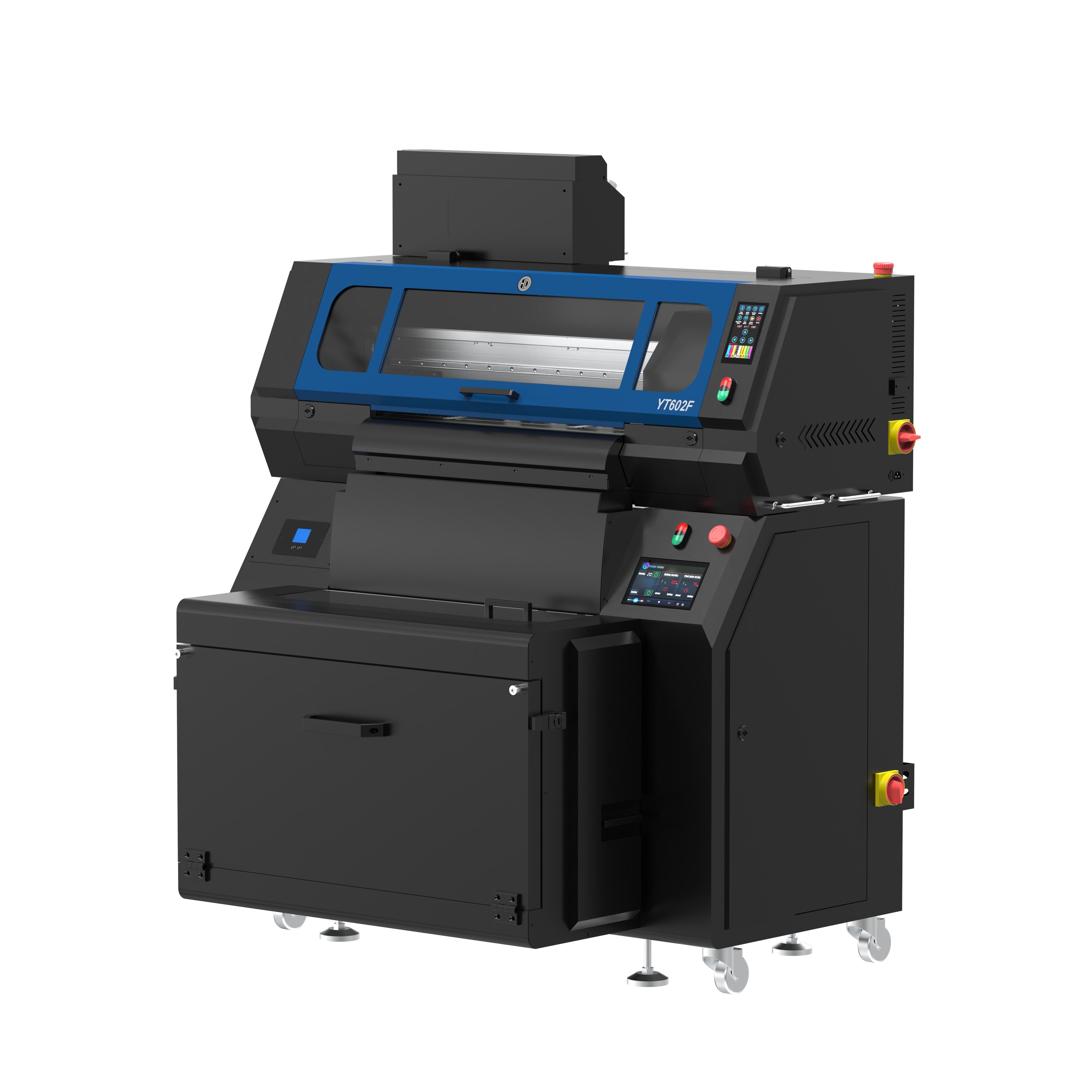

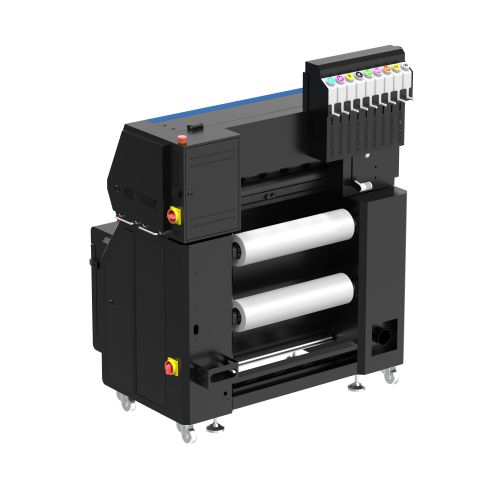

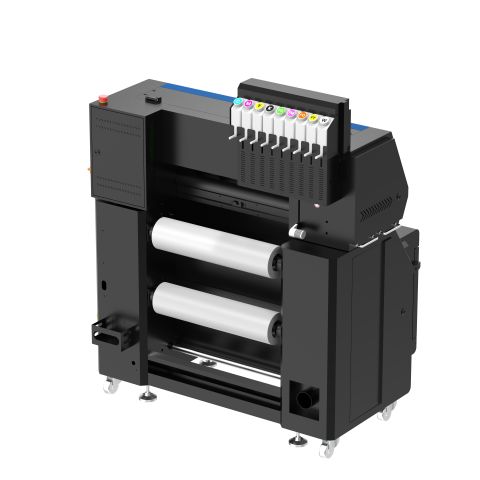

Model: YT602
EPONS i3200-A1HD + i1600-A1 Printhead.
Supports CMYK + 4 Fluorescent colors + White printing.
Automatic white ink circulation.
Low ink alarm function.
Built-in Smoke purifier.
Automatic printhead moisturizing.
Automatic printhead cleaning.
Film arching alarm.
Integrated communication for powder shaking and printing synchronization.
Automatic print pause upon opening the cover.
Automatic constant-temperature drying.
Share:
Product Details
Qualification Certification
Product Specifications
| Model | YT602F |
| Print Head | EPSON i3200-A1HD+i1600-A1 |
| Number of Print-heads | 2 |
| Printing Width | ≤62cm |
| Print color Configuration | CMYK+FO,FM,FY,FG+White |
| Print Media | DTF Film |
| Print Accuracy | 720*1200/720*1800 dpi |
| Recommended speed | 6PASS 5m²/h 8PASS 4m²/h |
| Ink Type | DTF ink |
| RIP Software | Devstudio/RIIN |
| operating System | Win7、Win10、Win11 |
| Temperature | 15 - 30℃ |
| Humidity | 35-65% |
| Rated Power | 2800W |
| Power Input | 50HZ/60HZ,220V/380V |
