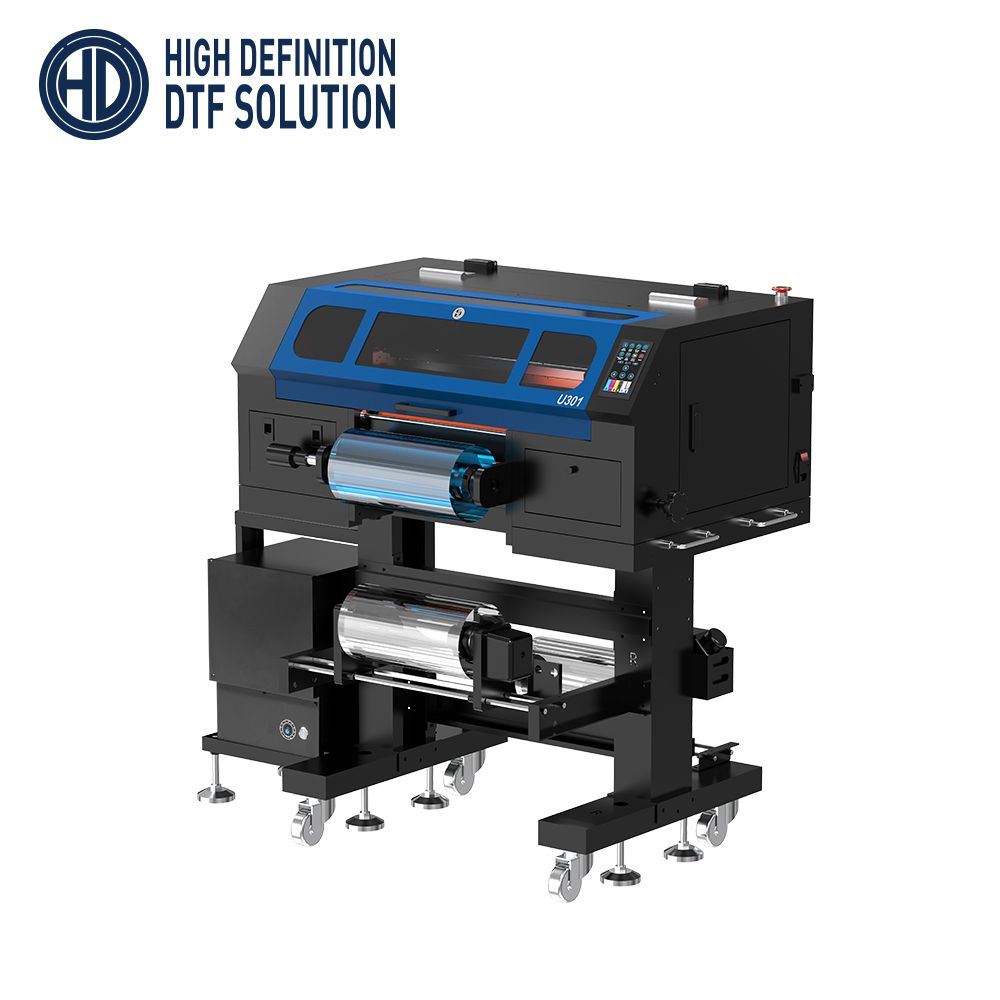

Model:U301
EPSON high precision print head i3200-HD*1
Support CMYK+White+Varnish Printing
UV Crystal Label effect making in one time
Built-in air-cooled UVLED and smell purifier in the machine
One Static electricity removers built inside the machine
Unique tilted nozzle design
Auto print head cleaning
Auto wetting for white head
White ink circulation and stirring
Share:
Product Details
Qualification Certification
Product Specifications
| Model: | U301 |
| Print head: | EPSON i3200-HD |
| Number of Print head : | 1 |
| Printi width: | ≤33cm |
| Print color: | CMYK+White+Varnish |
| Print media: | UV AB film |
| Print accuracy: | 720*1200 / 720*1800 / 720*2400 dpi |
| Print speed: | 6Pass 3.5㎡/h 8Pass 2.5㎡/h |
| Print ink: | UV ink |
| RIP software: | Devstudio / RIIN |
| Operating system: | Win7、Win10、Win11 |
| Print interface: | Gigabit network port |
| Trolley Anti-collision function: | Both ends of the trolley are equipped with touch anti-collision alarm emergency stop devices |
| Automatic Feeding Function: | Automatic tension discharging with probe induction |
| Paper Shortage Alarm Function: | Paper shortage alarm during printing, automatic stop printing |
| Waste Ink Alarm Function: | Automatic alarm when waste ink bottle is full |
| Circulating Stirring Function: | The white ink is independently powered, and it can be stirred regularly and indefinitely in the off state |
| Ink Shortage Alarm Function: | Automatic alarm for low ink volume of ink bottle |
| Print Platform Lighting Function | Print platform LED illumination |
| Platform Suction: | Adjustable suction power |
| Work Environment: | Temperature:15-30°C & Humidity: 35-65% |
| Power: | 900W |
| Voltage: | 110V/220V |
| Weight: | 135KG |
| Dimensions: | 100*60*115cm |
Qualification Certification
Printer Certificate
Powder-shaking Certificate
Oven Certificate
Smoke Purifier Certificate
